Product Detials

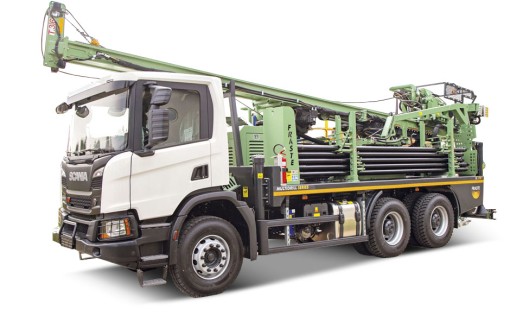

XL 170 T
The XL 170 T is a truck-mounted drilling rig offering exceptional flexibility and performance for mobile field operations.
Category:
FRASTE
The XL 170 T is an advanced, truck-mounted drilling rig engineered to deliver maximum mobility and performance. Retaining the core flexibility and power of its base design, it is optimized for high-demand field operations where rapid deployment is critical. It provides unparalleled efficiency for water well drilling, soil investigation, and mineral exploration, ensuring professional-grade reliability across diverse and challenging terrains.
Key Specifications:
- Power: CAT C7.1 - Stage V - Tier 4F - 129 kw (173 Hp) / CAT C4.4 - Stage IIIA - Tier 3 - 129,4 Kw (173,5 Hp) / PTO from truck engine
- Rotary head stroke: 5700-6700 mm (18,7,5-19,7 ft)
- Pull-up: 12000 daN (26977 lbf)
- Max rotary head torque: 1860 daNm (13718 ft lbf)
- Rated drilling capacity: 250 mt (820 ft)
Power: CAT C7.1 - Stage V - Tier 4F - 129 kw (173 Hp) / CAT C4.4 - Stage IIIA - Tier 3 - 129,4 Kw (173,5 Hp) / PTO from truck engine
Rotary head stroke: 5700-6700 mm (18,7,5-19,7 ft)
Pull-up: 12000 daN (26977 lbf)
Pull-down: 6800 daN (15287 lbf)
Max rotary head torque: 1860 daNm (13718 ft lbf)
Clamp: Ø 60-355 mm (2,3"-14")
Rated drilling capacity: 250 mt (820 ft)
